FE0-D-CLN NOflamm®
FE0-D-CLN NOflamm®

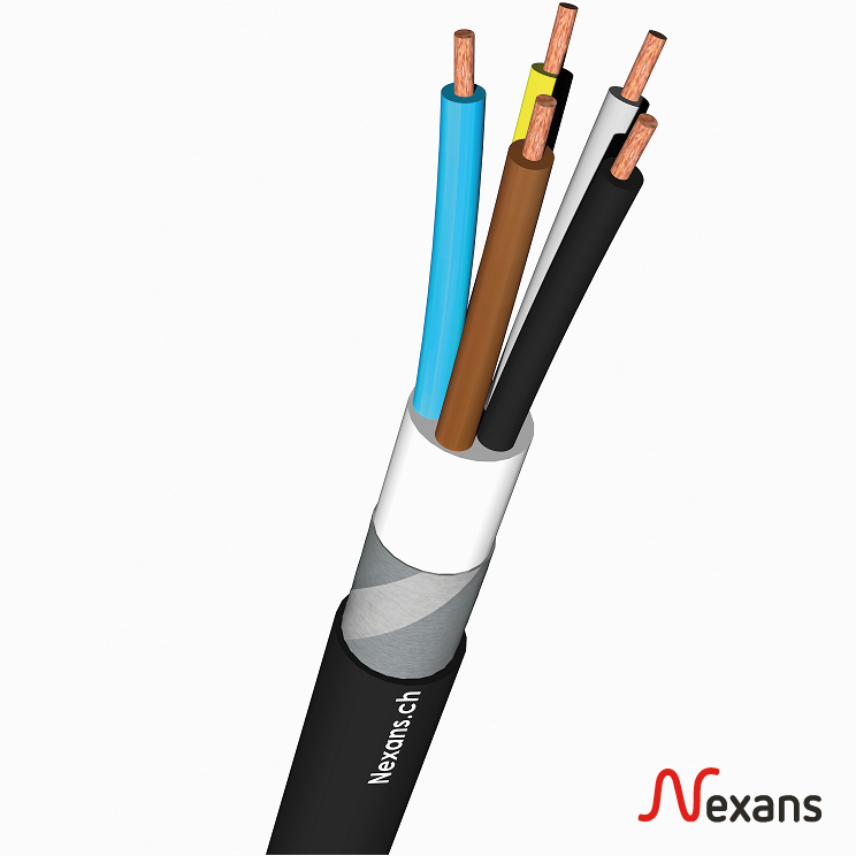

Armierte ein- und mehraderige NOflamm-Installationskabel
Mehr lesenFE0-D-CLN 7X1.5 SW LPE
Nexans ref. 10545114
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 7
- Leiterquerschnitt: 1.5 mm²
- Aussendurchmesser nominal: 13.7 mm
- Gewicht approximativ: 323 kg/km
FE0-D-CLN 2X2.5 SW LN
Nexans ref. 10545059
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 2
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 12.1 mm
- Gewicht approximativ: 237 kg/km
FE0-D-CLN 2X2.5 SW 2L_SW_Nu
Nexans ref. 10557554
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 2
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 12.1 mm
- Gewicht approximativ: 237 kg/km
FE0-D-CLN 3X2.5 SW 2LN
Nexans ref. 10545090
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 3
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 12.6 mm
- Gewicht approximativ: 268 kg/km
FE0-D-CLN 3X2.5 SW LNPE
Nexans ref. 10545099
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 3
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 12.6 mm
- Gewicht approximativ: 268 kg/km
FE0-D-CLN 4X2.5 SW 4L_SW_Nu
Nexans ref. 10545056
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 4
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 13.6 mm
- Gewicht approximativ: 316 kg/km
FE0-D-CLN 4X2.5 SW 3LN
Nexans ref. 10545093
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 4
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 13.6 mm
- Gewicht approximativ: 316 kg/km
FE0-D-CLN 5X2.5 SW 3LNPE
Nexans ref. 10545101
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 5
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 14.4 mm
- Gewicht approximativ: 358 kg/km
FE0-D-CLN 6X2.5 SW L
Nexans ref. 10545107
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 6
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 15.8 mm
- Gewicht approximativ: 425 kg/km
FE0-D-CLN 7X2.5 SW LNPE
Nexans ref. 10545113
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 7
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 15.8 mm
- Gewicht approximativ: 442 kg/km
FE0-D-CLN 8X2.5 SW L
Nexans ref. 10545108
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 8
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 17.7 mm
- Gewicht approximativ: 531 kg/km
FE0-D-CLN 12X2.5 SW L
Nexans ref. 10545057
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 12
- Leiterquerschnitt: 2.5 mm²
- Aussendurchmesser nominal: 19.1 mm
- Gewicht approximativ: 652 kg/km
FE0-D-CLN 3X4.0 SW 2LN
Nexans ref. 10545091
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 3
- Leiterquerschnitt: 4 mm²
- Aussendurchmesser nominal: 14.2 mm
- Gewicht approximativ: 356 kg/km
FE0-D-CLN 3X4.0 SW LNPE
Nexans ref. 10545098
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 3
- Leiterquerschnitt: 4 mm²
- Aussendurchmesser nominal: 14.2 mm
- Gewicht approximativ: 356 kg/km
FE0-D-CLN 5X4.0 SW 3LNPE
Nexans ref. 10545104
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 5
- Leiterquerschnitt: 4 mm²
- Aussendurchmesser nominal: 16.7 mm
- Gewicht approximativ: 499 kg/km
FE0-D-CLN 12X4.0 SW L
Nexans ref. 10545058
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 12
- Leiterquerschnitt: 4 mm²
- Aussendurchmesser nominal: 22.2 mm
- Gewicht approximativ: 928 kg/km
FE0-D-CLN 3X6 SW LNPE
Nexans ref. 10557759
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 3
- Leiterquerschnitt: 6 mm²
- Aussendurchmesser nominal: 16.1 mm
- Gewicht approximativ: 468 kg/km
FE0-D-CLN 4X6.0 SW 3LPE
Nexans ref. 10548581
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 4
- Leiterquerschnitt: 6 mm²
- Aussendurchmesser nominal: 17.3 mm
- Gewicht approximativ: 555 kg/km
FE0-D-CLN 5X6.0 SW 3LNPE
Nexans ref. 10545110
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 5
- Leiterquerschnitt: 6 mm²
- Aussendurchmesser nominal: 18.6 mm
- Gewicht approximativ: 654 kg/km
FE0-D-CLN 7X6.0 SW LNPE
Nexans ref. 10558253
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 7
- Leiterquerschnitt: 6 mm²
- Aussendurchmesser nominal: 20.0 mm
- Gewicht approximativ: 801 kg/km
FE0-D-CLN 8X6.0 SW L
Nexans ref. 10559350
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 8
- Leiterquerschnitt: 6 mm²
- Aussendurchmesser nominal: 23.1 mm
- Gewicht approximativ: 989 kg/km
FE0-D-CLN 12X6.0 SW L
Nexans ref. 10559328
- Verpackung: Schnittlänge (m)
- Leiterform: Draht
- Anzahl Leiter: 12
- Leiterquerschnitt: 6 mm²
- Aussendurchmesser nominal: 25.1 mm
- Gewicht approximativ: 1253 kg/km
FE0-D-CLN 2X10 RM SW 2L
Nexans ref. 10545195
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 2
- Leiterquerschnitt: 10 mm²
- Aussendurchmesser nominal: 18.5 mm
- Gewicht approximativ: 595 kg/km
FE0-D-CLN 3X10 RM SW LNPE
Nexans ref. 10545117
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 3
- Leiterquerschnitt: 10 mm²
- Aussendurchmesser nominal: 19.5 mm
- Gewicht approximativ: 708 kg/km
FE0-D-CLN 5X10 RM SW 3LNPE
Nexans ref. 10545112
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 10 mm²
- Aussendurchmesser nominal: 23.0 mm
- Gewicht approximativ: 1020 kg/km
FE0-D-CLN 7X10 RM SW LPE
Nexans ref. 10550802
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 7
- Leiterquerschnitt: 10 mm²
- Aussendurchmesser nominal: 25.0 mm
- Gewicht approximativ: 1274 kg/km
FE0-D-CLN 3X16 RM SW LNPE
Nexans ref. 10545947
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 3
- Leiterquerschnitt: 16 mm²
- Aussendurchmesser nominal: 22.7 mm
- Gewicht approximativ: 997 kg/km
FE0-D-CLN 3X16 RM SW 3L
Nexans ref. 10548171
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 3
- Leiterquerschnitt: 16 mm²
- Aussendurchmesser nominal: 22.7 mm
- Gewicht approximativ: 997 kg/km
FE0-D-CLN 4X16 RM SW 3LN
Nexans ref. 10545095
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 16 mm²
- Aussendurchmesser nominal: 24.7 mm
- Gewicht approximativ: 1217 kg/km
FE0-D-CLN 5X16 RM SW 3LNPE
Nexans ref. 10545100
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 16 mm²
- Aussendurchmesser nominal: 27.1 mm
- Gewicht approximativ: 1466 kg/km
FE0-D-CLN 7X16 RM SW LNPE
Nexans ref. 10559179
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 7
- Leiterquerschnitt: 16 mm²
- Aussendurchmesser nominal: 29.3 mm
- Gewicht approximativ: 1838 kg/km
FE0-D-CLN 7X16 RM SW LPE
Nexans ref. 10562053
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 7
- Leiterquerschnitt: 16 mm²
- Aussendurchmesser nominal: 29.3 mm
- Gewicht approximativ: 1838 kg/km
FE0-D-CLN 3X25 RM SW LNPE
Nexans ref. 10560839
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 3
- Leiterquerschnitt: 25 mm²
- Aussendurchmesser nominal: 25.9 mm
- Gewicht approximativ: 1374 kg/km
FE0-D-CLN 4X25 RM SW 3LN
Nexans ref. 10545097
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 25 mm²
- Aussendurchmesser nominal: 28.3 mm
- Gewicht approximativ: 1696 kg/km
FE0-D-CLN 5X25 RM SW 3LNPE
Nexans ref. 10545102
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 25 mm²
- Aussendurchmesser nominal: 30.9 mm
- Gewicht approximativ: 2040 kg/km
FE0-D-CLN 3X35 RM SW LNPE
Nexans ref. 10560850
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 3
- Leiterquerschnitt: 35 mm²
- Aussendurchmesser nominal: 28.8 mm
- Gewicht approximativ: 1774 kg/km
FE0-D-CLN 4X35 RM SW 3LN
Nexans ref. 10545105
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 35 mm²
- Aussendurchmesser nominal: 31.6 mm
- Gewicht approximativ: 2207 kg/km
FE0-D-CLN 5X35 RM SW 3LNPE
Nexans ref. 10545103
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 35 mm²
- Aussendurchmesser nominal: 34.7 mm
- Gewicht approximativ: 2677 kg/km
FE0-D-CLN 3X50 RM SW LNPE
Nexans ref. 10560851
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 3
- Leiterquerschnitt: 50 mm²
- Aussendurchmesser nominal: 32.6 mm
- Gewicht approximativ: 2306 kg/km
FE0-D-CLN 4X50 RM SW 3LN
Nexans ref. 10545106
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 50 mm²
- Aussendurchmesser nominal: 35.8 mm
- Gewicht approximativ: 2877 kg/km
FE0-D-CLN 5X50 RM SW 3LNPE
Nexans ref. 10545109
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 50 mm²
- Aussendurchmesser nominal: 39.3 mm
- Gewicht approximativ: 3494 kg/km
FE0-D-CLN 4X70 RM SW 3LN
Nexans ref. 10559320
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 70 mm²
- Aussendurchmesser nominal: 41.6 mm
- Gewicht approximativ: 3976 kg/km
FE0-D-CLN 5X70 RM SW 3LNPE
Nexans ref. 10545116
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 70 mm²
- Aussendurchmesser nominal: 45.8 mm
- Gewicht approximativ: 4839 kg/km
FE0-D-CLN 3X95 RM SW 3L
Nexans ref. 10550800
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 3
- Leiterquerschnitt: 95 mm²
- Aussendurchmesser nominal: 42.5 mm
- Gewicht approximativ: 4187 kg/km
FE0-D-CLN 4X95 RM SW 3LN
Nexans ref. 10559317
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 95 mm²
- Aussendurchmesser nominal: 46.9 mm
- Gewicht approximativ: 5277 kg/km
FE0-D-CLN 5X95 RM SW 3LNPE
Nexans ref. 10551375
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 95 mm²
- Aussendurchmesser nominal: 51.6 mm
- Gewicht approximativ: 6447 kg/km
FE0-D-CLN 4X120 RM SW 3LN
Nexans ref. 10545092
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 120 mm²
- Aussendurchmesser nominal: 52.9 mm
- Gewicht approximativ: 6734 kg/km
FE0-D-CLN 5X120 RM SW 3LNPE
Nexans ref. 10545118
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 120 mm²
- Aussendurchmesser nominal: 60.5 mm
- Gewicht approximativ: 8626 kg/km
FE0-D-CLN 4X150 RM SW 3LN
Nexans ref. 10545094
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 150 mm²
- Aussendurchmesser nominal: 58.1 mm
- Gewicht approximativ: 8241 kg/km
FE0-D-CLN 5X150 RM SW 3LNPE
Nexans ref. 10545111
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 5
- Leiterquerschnitt: 150 mm²
- Aussendurchmesser nominal: 64.1 mm
- Gewicht approximativ: 10091 kg/km
FE0-D-CLN 3X185 RM SW LNPE
Nexans ref. 10545115
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 3
- Leiterquerschnitt: 185 mm²
- Aussendurchmesser nominal: 58.2 mm
- Gewicht approximativ: 8084 kg/km
FE0-D-CLN 4X185 RM SW 3LN
Nexans ref. 10545096
- Verpackung: Schnittlänge (m)
- Leiterform: Rund verdichtet
- Anzahl Leiter: 4
- Leiterquerschnitt: 185 mm²
- Aussendurchmesser nominal: 64.3 mm
- Gewicht approximativ: 10221 kg/km
Beschreibung
Beschreibung
Normen
-
InternationalEN 50575; EN 60332-1-2; EN 60529; EN 60754-2; IEC 60228; IEC 61034
-
NationalSEV TP 20B/3C-d
Anwendungen
Halogenfreies Installationskabel mit Armierung für den Einsatz in Gebäuden und technischen Anlagen. Die Stahlbänder schützen das Kabel vor Nagetieren. Diese Art von Kabel wird seit Jahren für Bahn- und Autobahnprojekte verwendet
Konstruktion
- Leiter : Draht (Klasse 1) von 1.5 - 6mm2 und Seile (Klasse 2) von 10 - 630mm2
- Isolation : Polyethylen
- Füllung : Ja
- Armierung : 2 Stahlbänder
- Mantel : HFFR schwarz
Eigenschaften
- BauPv Klasse Dca s2, d2, a2
- UV-beständig
- Wasserfest. Kann bis zu 2 Monate vollständig eingetaucht werden (AD7)
- Die halogenfreie Konstruktion bietet eine höhere Sicherheit als TT Kabel
- Mindestbiegeradius: 10X Durchmesser
Eigenschaften
Eigenschaften
Ressourcen
Ressourcen
Unsere Websites
Wählen Sie Ihr Land aus, um unsere Produkte und Lösungen zu finden
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
