Nexans 484TB – T connector for medium voltage networks. Separable Interface C connector for XLPE/EPR cables, touch-proof and IP67 rated. Compact profile for tight spaces, compatible with Nexans extenders, bushings, surge arresters and test accessories. From 12 to 42 kV, cross-sectional area from 240 to 630 mm² In short: Nexans reliability, easy installation, minimal maintenance.
Read moreAMV-C-K484TBGC-15/025-050S(3)
Nexans ref. 10220302
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 16 ... 22 mm
- Conductor cross-section, range: 25 ... 50 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGC-19/095-150S(3)
Nexans ref. 10220303
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 20 ... 26.5 mm
- Conductor cross-section, range: 95 ... 150 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGC-22/150-240S(3)
Nexans ref. 10220354
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 23.5 ... 31 mm
- Conductor cross-section, range: 150 ... 240 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGC-27/240-300S(3)
Nexans ref. 10220355
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Conductor cross-section, range: 240 ... 300 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGC-32/400-500S(3)
Nexans ref. 10220356
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 34 ... 42.5 mm
- Conductor cross-section, range: 400 ... 500 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGC-37/630S(3)
Nexans ref. 10220357
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Conductor cross-section, range: 95 ... 240 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGCE-15/025-050S(3)
Nexans ref. 10220360
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 16 ... 22 mm
- Conductor cross-section, range: 25 ... 50 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGCE-19/095-150S(3)
Nexans ref. 10220495
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 20 ... 26.5 mm
- Conductor cross-section, range: 95 ... 150 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGCE-22/150-240S(3)
Nexans ref. 10220496
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 23.5 ... 31 mm
- Conductor cross-section, range: 150 ... 240 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGCE-27/240-300S(3)
Nexans ref. 10220497
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Conductor cross-section, range: 240 ... 300 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGCE-32/400-500S(3)
Nexans ref. 10220498
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 34 ... 42.5 mm
- Conductor cross-section, range: 400 ... 500 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-K484TBGCE-37/630S(3)
Nexans ref. 10220499
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 39 ... 48.5 mm
- Conductor cross-section, range: 95 ... 240 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
AMV-C-M484TBGC-19/025-050S(3)
Nexans ref. 10220358
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 20 ... 26.5 mm
- Conductor cross-section, range: 25 ... 50 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGC-22/050-150S(3)
Nexans ref. 10220359
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 23.5 ... 31 mm
- Conductor cross-section, range: 50 ... 150 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGC-27/185-300S(3)
Nexans ref. 10220361
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Conductor cross-section, range: 185 ... 300 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGC-37/240S(3)
Nexans ref. 10220533
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Conductor cross-section, range: 95 ... 240 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGC-37/400-630S(3)
Nexans ref. 10220362
- Packaging: Set (Kit)
- Screen: Copper wires / 6mm²
- Diameter over insulation, range: 39 ... 48.5 mm
- Conductor cross-section, range: 400 ... 630 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGCE-19/025-050S(3)
Nexans ref. 10220500
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 20 ... 26.5 mm
- Conductor cross-section, range: 25 ... 50 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGCE-22/050-150S(3)
Nexans ref. 10220501
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 23.5 ... 31 mm
- Conductor cross-section, range: 50 ... 150 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGCE-27/185-300S(3)
Nexans ref. 10220502
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Conductor cross-section, range: 185 ... 300 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGCE-27/240S(3)
Nexans ref. 10220534
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 28.5 ... 37.5 mm
- Conductor cross-section, range: 95 ... 240 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
AMV-C-M484TBGCE-37/400-630S(3)
Nexans ref. 10220503
- Packaging: Set (Kit)
- Screen: Aluminium or Copper foil
- Diameter over insulation, range: 39 ... 48.5 mm
- Conductor cross-section, range: 400 ... 630 mm²
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
Description
Description
Standards
-
ProductCENELEC EN 50180
-
TestCENELEC HD 629.1
Description
484TB Nexans – the compact T connector that secures your medium voltage networks.
The Nexans EUROMOLD 484TB Interface C compact separable connector is designed for medium voltage XLPE or EPR insulated cables where reliability, safety and flexibility are essential.
Installed at the cable end, it provides touch-proof connection to all equipment fitted with an Interface C, whether in new substations or retrofit projects.
Thanks to its compact and modular design, the 484TB:
- fits a wide range of voltage levels (12-42kV) and conductor cross-sections ( 240-630 mm²),
- easily combines with Nexans extenders, bushings, earthing devices, test rods and surge arresters,
- allows simple or multiple configurations (feeder, branch, protection, measurement).
Manufactured from 100 % EPDM and individually routine tested, the 484TB offers:
- excellent electrical and mechanical performance,
- IP67 protection to withstand harsh environments,
- minimal maintenance once correctly installed.
Choosing the 484TB Interface C compact means:
- reducing space requirements in your substations,
- simplifying installation and stock management thanks to multi-interface compatibility,
- securing your medium voltage networks in the long term.
Nexans 484TB – the compact reference connector for reliable, modular and future-ready networks.

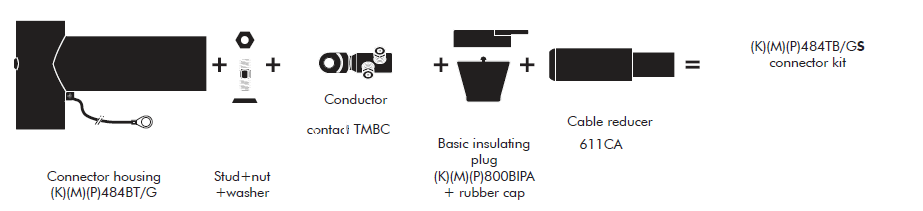

Kit contents
Characteristics
Characteristics
Resources
Resources
Documentation
Selling & delivery Information
Prefabricated factory-tested socket body with built-in electrode and thick semiconductor layer, conductive outer jacket. Contact pin, screen connection, cable adapter, mounting hardware and mounting instructions.
To indicate to the order:
• Cable type
• Diameter on insulation
• Grounding system, hardware
• Section and nature of the driver
To be ordered separately:
• Clamps
• Distribution cap for three-pole cable
Packaging Unit: Set of 3 pcs
