Nexans GKN+ Cu
Certifications and labels
Nexans GKN+ Cu

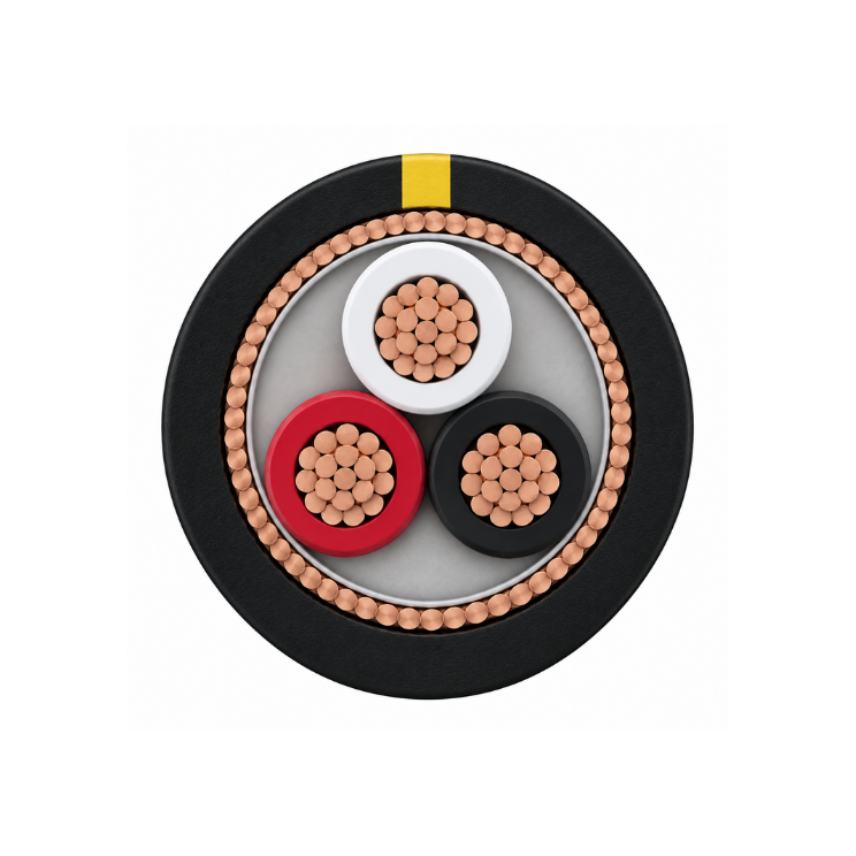

The Nexans GKN+ Cu three-core cable is a new-generation low-carbon cable designed to deliver performance, durability, and reduced environmental impact. Manufactured in Switzerland, it stands out thanks to a fully recycled outer sheath and conductors containing 10.4% recycled copper. It also integrates Metrium, an intelligent and precise marking system that indicates the remaining cable length in real time, simplifying installation and optimising on-site monitoring. Thanks to its cross-linked HEPR insulation, the GKN+ Cu cable ensures high robustness as well as excellent mechanical and thermal performance.
Read moreGKN+ 3 X 10/10 Cure 2LN 0.6/1 kV
Nexans ref. 10588140
- Packaging: m
- Conductor cross-section: 10 mm²
- Perm. current rating in air 30°C - trefoil formation: 74 A
- Perm. current rating buried 20°C - trefoil formation: 69 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 56.1 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 53.9 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 52.6 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 71.6 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 68.9 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 75.3 A
GKN+ 3 X 10/10 Cure 0.6/1 kV
Nexans ref. 10588139
- Packaging: m
- Conductor cross-section: 10 mm²
- Perm. current rating in air 30°C - trefoil formation: 74 A
- Perm. current rating buried 20°C - trefoil formation: 69 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 56.1 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 53.9 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 52.6 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 71.6 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 68.9 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 75.3 A
GKN+ 3 X 10/10 Curm stranded 0.6/1 kV
Nexans ref. 10588141
- Packaging: m
- Conductor cross-section: 10 mm²
- Perm. current rating in air 30°C - trefoil formation: 76 A
- Perm. current rating buried 20°C - trefoil formation: 69 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 56.2 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 54 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 53.3 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 71.9 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 69.1 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 76.1 A
GKN+ 3 X 16/16 Curm stranded 0.6/1 kV
Nexans ref. 10588142
- Packaging: m
- Conductor cross-section: 16 mm²
- Perm. current rating in air 30°C - trefoil formation: 101 A
- Perm. current rating buried 20°C - trefoil formation: 90 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 74.1 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 71.1 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 70.4 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 94.9 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 90.9 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 100.7 A
GKN+ 3 X 25/25 Curm stranded 0.6/1 kV
Nexans ref. 10588143
- Packaging: m
- Conductor cross-section: 25 mm²
- Perm. current rating in air 30°C - trefoil formation: 133 A
- Perm. current rating buried 20°C - trefoil formation: 115 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 95.3 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 91.2 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 93.1 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 122.1 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 116.7 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 132.6 A
GKN+ 3 X 50/50 Curm stranded 0.6/1 kV
Nexans ref. 10588144
- Packaging: m
- Conductor cross-section: 50 mm²
- Perm. current rating in air 30°C - trefoil formation: 200 A
- Perm. current rating buried 20°C - trefoil formation: 170 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 137.7 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 131.1 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 140.2 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 176.7 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 168.1 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 200.2 A
GKN+ 3 X 6/6 Cure 2LN 0.6/1 kV
Nexans ref. 10588138
- Packaging: m
- Conductor cross-section: 6 mm²
- Perm. current rating in air 30°C - trefoil formation: 55 A
- Perm. current rating buried 20°C - trefoil formation: 51 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 42.3 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 40.8 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 38.6 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 54 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 52 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 55 A
GKN+ 3 X 6/6 Cure 0.6/1 kV
Nexans ref. 10588137
- Packaging: m
- Conductor cross-section: 6 mm²
- Perm. current rating in air 30°C - trefoil formation: 55 A
- Perm. current rating buried 20°C - trefoil formation: 51 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 42.3 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 40.8 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 38.6 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 54 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 52 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 55 A
GKN+ 3 X 95/95 Curm stranded 0.6/1 kV
Nexans ref. 10588145
- Packaging: m
- Conductor cross-section: 95 mm²
- Perm. current rating in air 30°C - trefoil formation: 308 A
- Perm. current rating buried 20°C - trefoil formation: 252 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 207.4 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 196.3 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 215.7 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 266.8 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 252.2 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 307.9 A
GKN+ 3 X 150/150 Curm stranded 0.6/1 kV
Nexans ref. 10588146
- Packaging: m
- Conductor cross-section: 150 mm²
- Perm. current rating in air 30°C - trefoil formation: 408 A
- Perm. current rating buried 20°C - trefoil formation: 323 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 267.3 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 251.9 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 286.1 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 344.2 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 324 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 408.2 A
GKN+ 3 X 240/240 Curm stranded 0.6/1 kV
Nexans ref. 10588147
- Packaging: m
- Conductor cross-section: 240 mm²
- Perm. current rating in air 30°C - trefoil formation: 547 A
- Perm. current rating buried 20°C - trefoil formation: 433 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627: 356 A
- I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1: 333.4 A
- I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1: 384.6 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627: 459.1 A
- I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1: 429.5 A
- I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1: 547.2 A
Description
Description
Standards
-
ProductHD 603; IEC 60228
-
NationalASE
Applications
This family is designed for underground low-voltage networks requiring high reliability:
- Underground low-voltage distribution networks
- Installation in ducts, trenches, cable trays, and direct burial
- Electrical substations
- Infrastructures requiring service continuity and reliability
Key advantages
- 100% recycled outer sheath, significantly reducing environmental impact
- 10.4% recycled copper in the conductors
- CO2 emissions reduced by 9% to 17%
- Metrium length management for easier pulling
- HEPR insulation providing excellent mechanical and thermal resistance
- Full transparency thanks to the PEP Ecopassport
- Low sheath shrinkage / high abrasion resistance
- Halogen-free
By choosing the GKN+ Cu three-core cable, you opt for a durable and high-performance solution aligned with modern carbon footprint reduction requirements, without compromising on reliability.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Number of conductors
3
