SW 1x (4/1,50) PE-T-CLT
Nexans ref. 10152437
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 1
- Aussendurchmesser: 12.9 mm
- Approximatives Gewicht: 0.21 kg/m
SW 3x (4/1,50) PE-T-CLT
Nexans ref. 10152443
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 3
- Aussendurchmesser: 20.9 mm
- Approximatives Gewicht: 0.53 kg/m
SW 5X (4/1,5) PE-T-CLT
Nexans ref. 10152448
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 5
- Aussendurchmesser: 24.2 mm
- Approximatives Gewicht: 0.74 kg/m
SW 7x (4/1.50) PE-T-CLT
Nexans ref. 10152451
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 7
- Aussendurchmesser: 26.2 mm
- Approximatives Gewicht: 0.93 kg/m
SW 10x (4/1,50) PE-T-CLT
Nexans ref. 10152454
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 10
- Aussendurchmesser: 31.7 mm
- Approximatives Gewicht: 1.3 kg/m
SW 15x (4/1,50) PE-T-CLT
Nexans ref. 10152457
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 15
- Aussendurchmesser: 36.1 mm
- Approximatives Gewicht: 1.81 kg/m
SW 20x (4/1,50) PE-T-CLT
Nexans ref. 10152460
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 20
- Aussendurchmesser: 41.9 mm
- Approximatives Gewicht: 2.35 kg/m
SW 25x (4/1.50) PE-T-CLT
Nexans ref. 10152463
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 25
- Aussendurchmesser: 47 mm
- Approximatives Gewicht: 2.93 kg/m
SW 30x (4/1,50) PE-T-CLT
Nexans ref. 10152465
- Verpackung: Schnittlänge (m)
- Anzahl Vierer: 30
- Aussendurchmesser: 48.1 mm
- Approximatives Gewicht: 3.27 kg/m
Beschreibung
Beschreibung
Normen
-
InternationalIEC 60754-1; IEC 60754-2; IEC 61034
Anwendungen
Stellwerkanlagekabel für Eisenbahnen. Diese Kabel werden für Leitungsblöcke, Signalisierung, Kontroll- und Sicherheitssignale

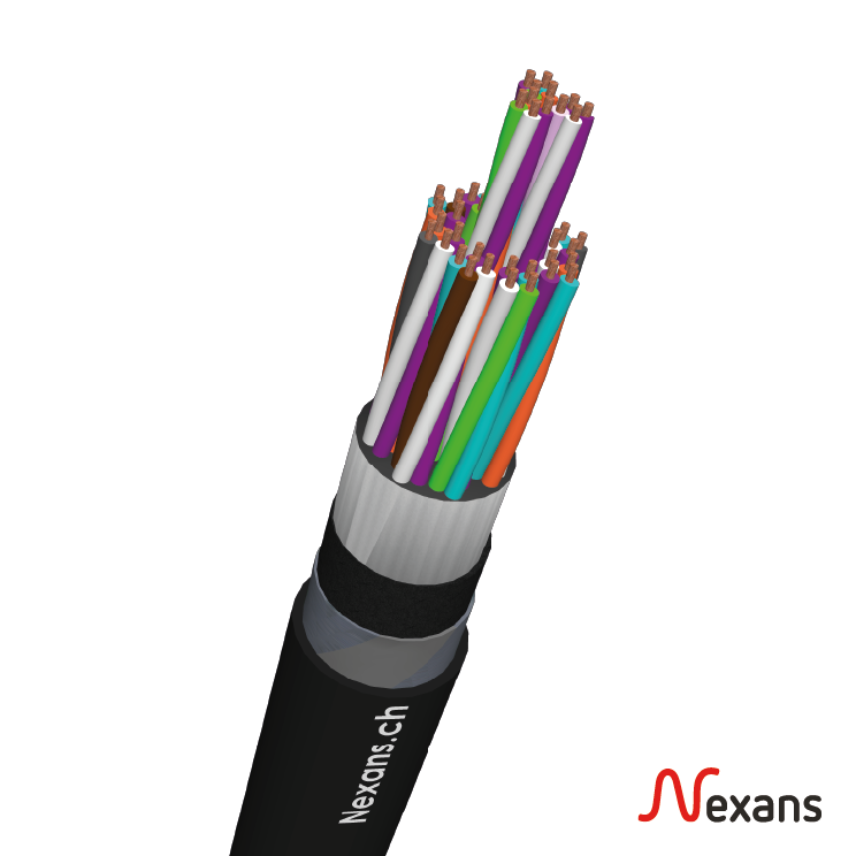

Aufbau
- Leiter : Kupfer
- Isolation : Polyethylen
- Armierung : 2 Kupferbänder
- Mantel : PE LLD schwarz
Eigenschaften
- BauPv Klasse Fca
- SBB normiert (3001.82.1000)
- Nagetierschutz
Eigenschaften
Eigenschaften
Konstruktionsmerkmale
Konstruktionsmerkmale
Aussenmantel
PE LLD
Leiterisolationsmaterial
PE
Anwendungsmerkmale
Anwendungsmerkmale
Einsatzbereich
Ausseninstallationen
Installationstyp
In Oberflächenkanäle
Wasserdicht
Nein
