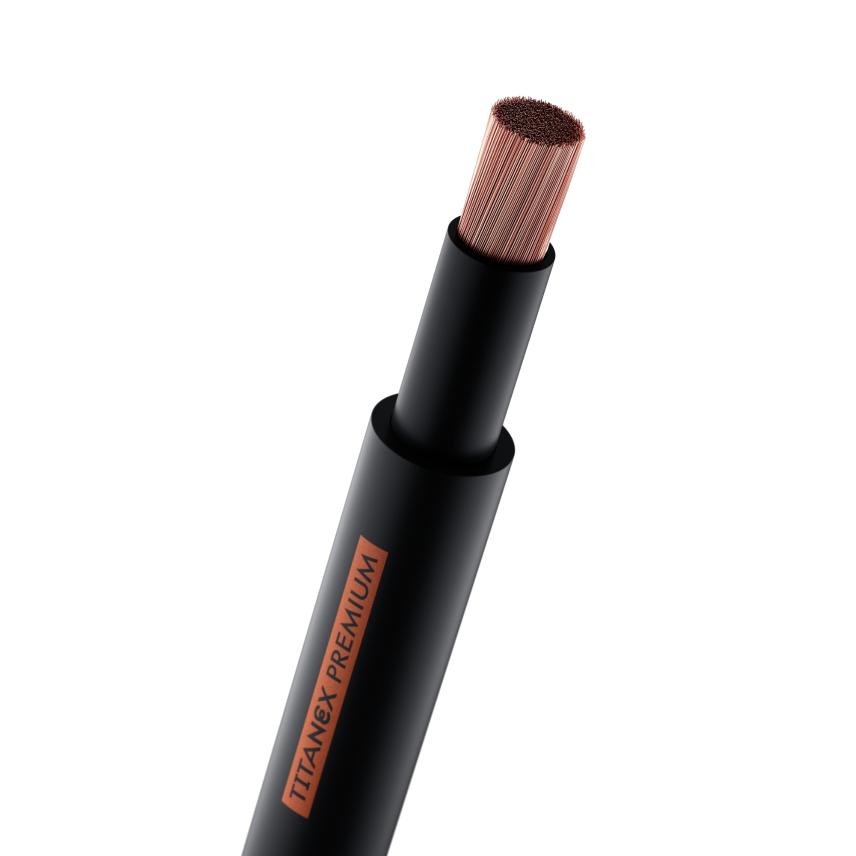

H07RN-F TITANEX® PREMIUM
NEW
H07RN-F TITANEX® PREMIUM
TITANEX® PREMIUM is a next-generation flexible elastomer cable designed to free you from all constraints. Halogen-free, water-resistant (AD8) and cold-resistant down to –50 °C, it delivers exceptional reliability for installations requiring robustness, flexibility and enhanced safety. Thanks to its advanced technology, it combines the properties of several specialised cables, ensuring versatile and long-lasting performance in demanding industrial conditions.
Read moreTITANEX PREMIUM 4X1X240
Nexans ref. 10559644
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Dynamic bending factor: 10 (xD)
TITANEX PREMIUM 4X1X300
Nexans ref. 10566716
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 300 mm²
- Dynamic bending factor: 10 (xD)
TITANEX PREMIUM 4x1x150
Nexans ref. 10564517
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Dynamic bending factor: 10 (xD)
TITANEX PREMIUM 4x1x185
Nexans ref. 10559643
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Dynamic bending factor: 10 (xD)
TITANEX® PREMIUM 1x150 GL
Nexans ref. 10211733 - Country ref. 01272295
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 150 mm²
- Dynamic bending factor: 8 (xD)
TITANEX® PREMIUM 1x185 GL
Nexans ref. 10211824 - Country ref. 01272296
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 185 mm²
- Dynamic bending factor: 8 (xD)
TITANEX® PREMIUM 1x240 GL
Nexans ref. 10211825 - Country ref. 01272297
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 240 mm²
- Dynamic bending factor: 8 (xD)
TITANEX® PREMIUM 1x300 GL
Nexans ref. 10211826 - Country ref. 01272298
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 300 mm²
- Dynamic bending factor: 8 (xD)
TITANEX® PREMIUM 1x400 GL
Nexans ref. 10225406 - Country ref. 01272299
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 400 mm²
- Dynamic bending factor: 8 (xD)
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-1; IEC 60754-1; IEC 60754-2
Applications
TITANEX® PREMIUM cable is intended for installations requiring strength, flexibility and safety in a wide range of environments:
- Fixed or mobile industrial installations
- Areas exposed to extreme cold or severe climatic conditions
- Applications requiring temporary immersion (H07RN8-F properties)
- Environments at risk of aliphatic hydrocarbons
- Installations with fire risks (halogen-free, flame-retardant)
- Power supply for motors, machine tools and mobile equipment
- Fixed installations up to 450/750 V or 1000 V depending on configuration
Key advantages
- Resistant to accidental mechanical and chemical stresses
(oils, aliphatic hydrocarbons) - UV-resistant, ideal for outdoor use
- Water-resistant (AD8), ideal for humid or temporarily submerged environments
- Highly flexible (class 5) for easier installation
- Halogen-free: low smoke emission
By choosing TITANEX® PREMIUM, you opt for a reliable, robust and durable cable, perfectly suited to the most demanding professional installations.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
