Aerial Optical Fiber cable (ADSS) /5000
Aerial Optical Fiber cable (ADSS) /5000
Aerial Metalfree Optical Fibre Cable. ADSS (up to 144 OF) with maximal service traction load of 5000daN
Read moreLL 12/T12 DT-KKT/5000
Nexans ref. 10177639
- Packaging: Cut to length (m)
- Number of optical fibres: 12
LL 24/T12 DT-KKT/5000
Nexans ref. 10177641
- Packaging: Cut to length (m)
- Number of optical fibres: 24
LL 36/T12 DT-KKT/5000
Nexans ref. 10177681
- Packaging: Cut to length (m)
- Number of optical fibres: 36
LL 48/T12 DT-KKT/5000
Nexans ref. 10177683
- Packaging: Cut to length (m)
- Number of optical fibres: 48
LL 60/T12 DT-KKT/5000
Nexans ref. 10177670
- Packaging: Cut to length (m)
- Number of optical fibres: 60
LL 72/T12 DT-KKT/5000
Nexans ref. 10152690
- Packaging: Cut to length (m)
- Number of optical fibres: 72
LL 96/T12 DT-KKT/5000
Nexans ref. 10532389
- Packaging: Cut to length (m)
- Number of optical fibres: 96
Description
Description
Standards
-
InternationalNexans specification
Preferential use
- Self-suspended aerial cable
- For long span line
Key-points
- Concentrical construction
- Ligth non-metallic armour
- Very high crush resistance
- High admissible cable elongation

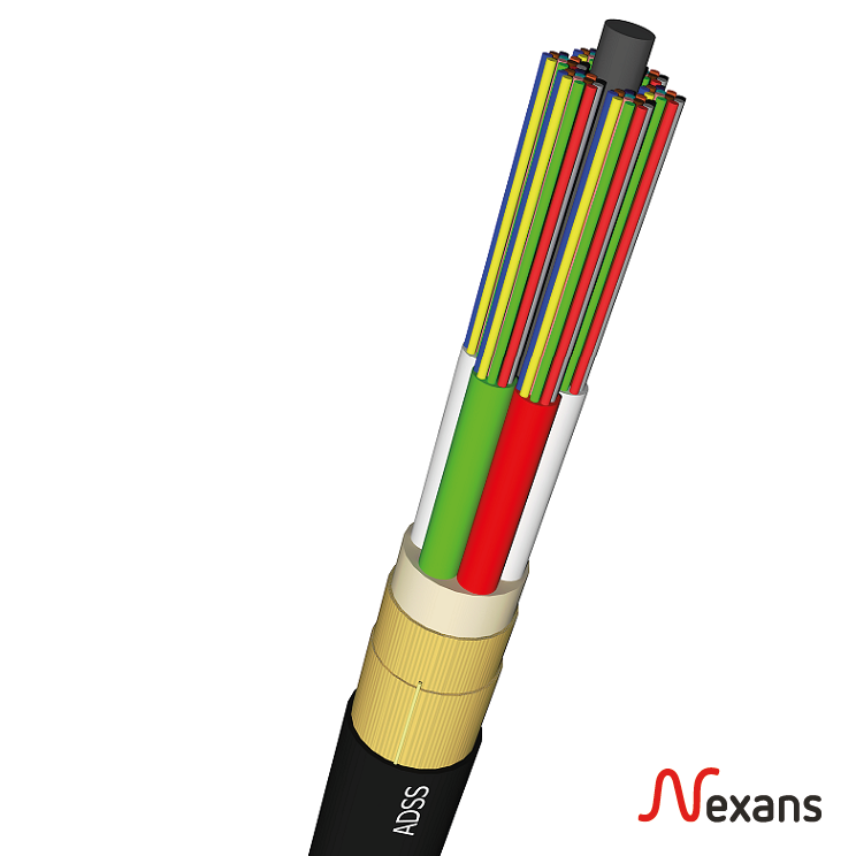

Cable construction
- Reinforced central strength element
- Assembly of jelly filled tubes with optical fibres
- Swelling elements
- Inner PE sheath
- Synthetic traction elements
- Black outer PE sheath with metering
Other versions on request
- Anti-tracking* outer PE sheath
- According to specific needs
Aerial Metalfree Optical Fibre Cable. ADSS (up to 72 OF) with maximal service traction load of 5000daN
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Construction type
Loose Tube
Fiber optic type
Standard Monomode
Metal free
-
Outer sheath
PE LLD
Reinforcement members material type
Aramid
Mechanical characteristics
Mechanical characteristics
Maximum tensile load during service (Tl)
5000.0 daN
Usage characteristics
Usage characteristics
Minimum static operating bending radius
400 mm
